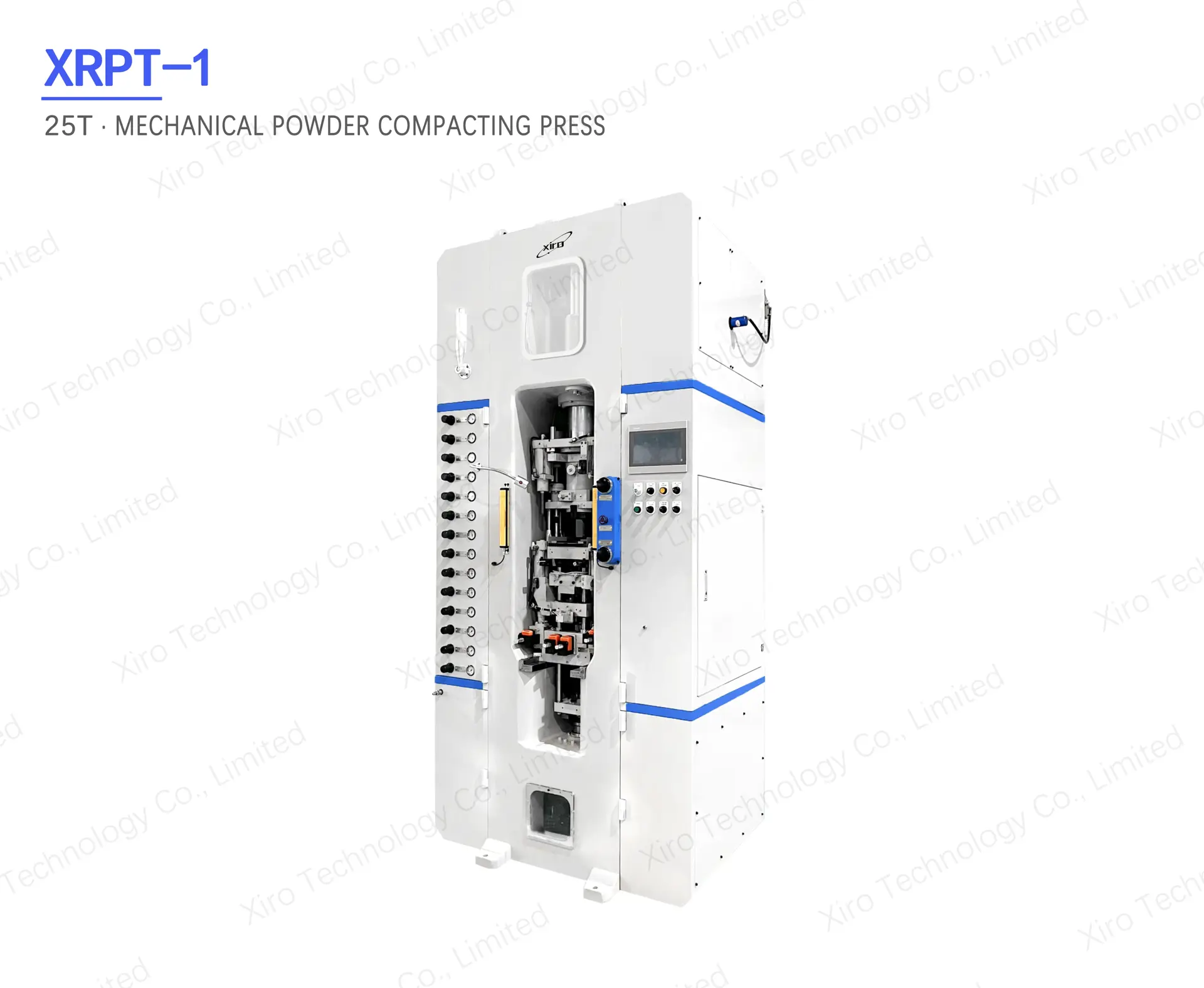

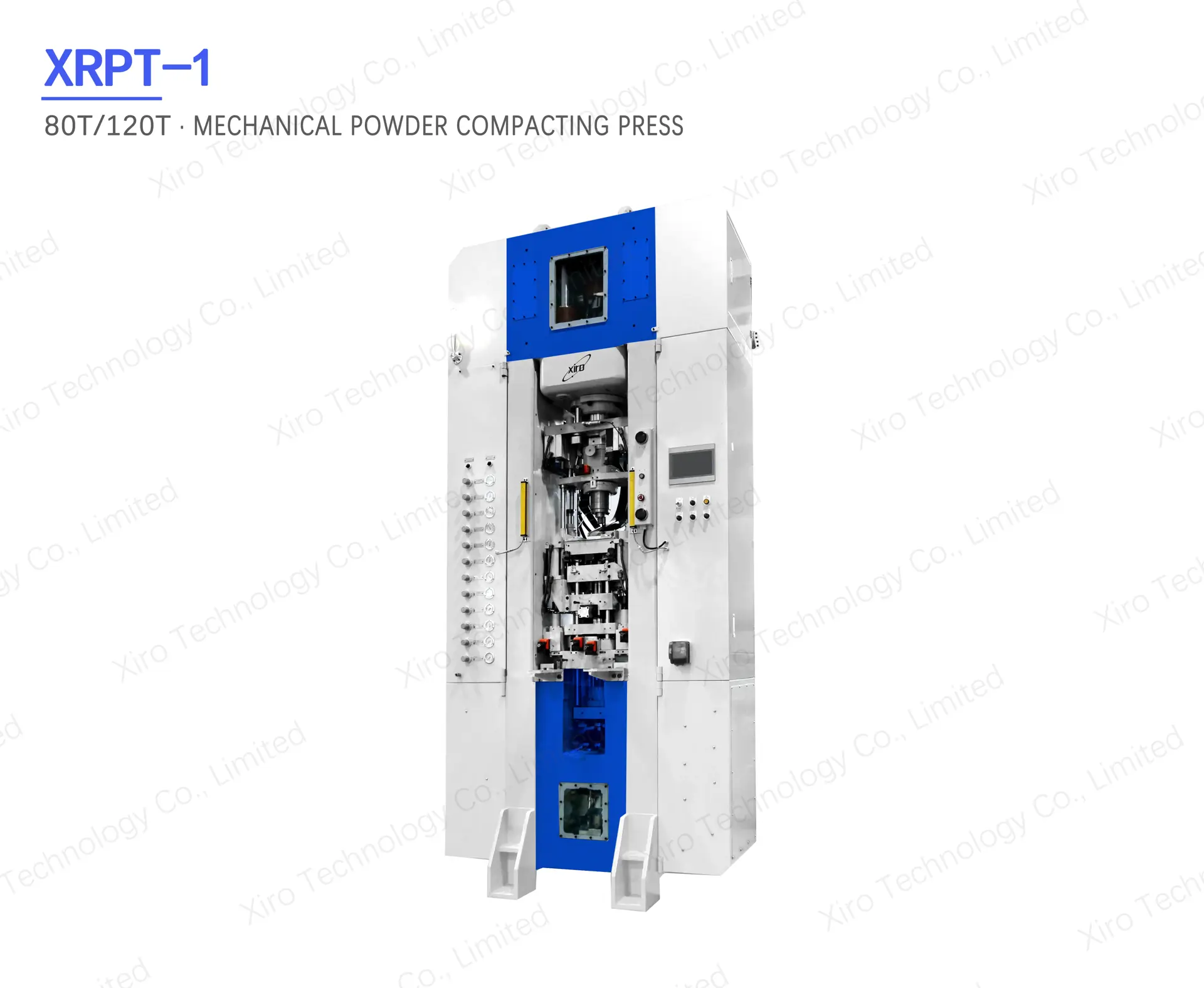

Compaction Force

250 kN

400 kN (Maximum compaction force: 45 T)

800 kN

1200 kN

Ejection Force

150 kN

300 kN

400 kN

600 kN

Die (Middle Die) Load Capacity

150 kN

300 kN

400 kN

600 kN

Upper Punch Stroke

120 mm

130 mm

150 mm

200 mm

Upper Punch Adjustment Range

50 mm

60 mm

70 mm (servo electric adjustment)

100 mm (servo electric adjustment)

Fill Depth

90 mm

100 mm

110 mm(servo electric adjustment)

150 mm(servo electric adjustment)

Ejection Stroke

70 mm

70 mm

80 mm (linked manual adjustment)

100 mm

Die Step Height Adjustment

60 mm

--

80 mm(servo electric adjustment)

100 mm(servo electric adjustment)

Powder Feed Adjustment Stroke

5 mm

5 mm

6 mm

7.5 mm

Die Vibration Control

1–3 cycles

Middle die face adjustment range

±10 mm

Die Set Accuracy

Platen parallelism and guide pillar perpendicularity within 0.01 mm

Forming Speed

12–36 SPM

6–45 SPM

12–36 SPM

6–25 SPM

Overload / Underload Protection

Hydraulic load cell

Clutch System

Pneumatic clutch–brake combination

Pneumatic clutch–brake combination

Pneumatic clutch–brake combination

--

Lubrication Method

Internal circulation pressure lubrication

Powder Feeding System

Cam-driven linear feed

Powder Hopper Capacity

20 L

30 L

45 L

60 L

Angle Controller

Encoder 360 (Accuracy ±0.5°)

Operation Modes

Jog, Continuous, Stop, Emergency Stop, Reverse, Powder Detection Switch, Production Counter, Production Ratio Counter, Pressure Monitoring Switch

Electric, Continuous, Stop, Emergency Stop, Reverse, Powder Detection Switch, Production Counter, Production Ratio Counter, Pressure Monitoring Switch

Jog, Continuous, Stop, Emergency Stop, Reverse, Powder Detection Switch, Production Counter, Production Ratio Counter, Pressure Monitoring Switch

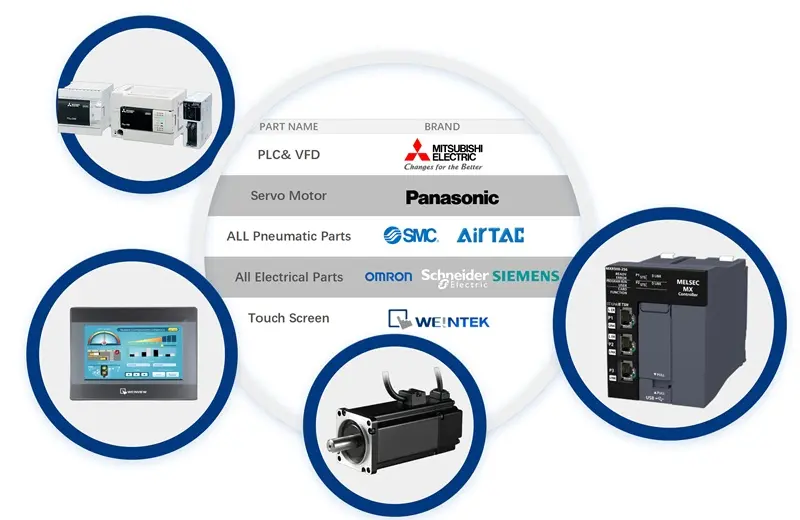

Main Motor Power

5.5 kW

7.5 kW

11 kW (electric servo)

40 kW (electric servo)

Air Consumption

20 L/min (all functions enabled)

100 L/min (all functions enabled)

Power Supply

380 V, 50 Hz (or as customer request)

Control Voltage

DC 24 V

Tooling Structure

Upper-2 / Lower-3

Floating Core Rod

Included

Machine Weight

Approx. 3.5 T

Approx. 5.5 T

Approx. 11 T

Approx. 18 T

Overall Dimensions (W × D × H)

1400 × 1070 × 2990 mm

1570 × 1000 × 3368 mm

1810 × 1100 × 4065 mm

2300 × 1750 × 4900 mm

Die Set Technical Parameters (Upper 2 / Lower 3)

Upper Outer Punch Pressure

250 kN

400 kN

800 kN

1200 kN

Upper Outer Punch Filling Force

5 kN (∮120 cylinder diameter, Air Pressure: 0.5 MPa)

8 kN (Ø150 cylinder, air pressure 0.5 MPa)

8.7 kN (Ø160 cylinder)

14 kN (Ø200 cylinder)

Upper Inner Punch Pressure

250 kN

250 kN

400 kN

600 kN

Upper Inner Punch Demolding Force

7.8 kN (∮120 cylinder diameter, Air Pressure: 0.5 MPa)

7.8 kN (Ø140 cylinder, air pressure 0.5 MPa)

8.9 kN (Ø150 cylinder)

13 kN (Ø180 cylinder)

Middle Die Pressure

150 kN

300 kN

400 kN

600 kN

Next Punch Pressure

250 kN (Floating)

400 kN (floating)

800 kN

1200 kN

Lower Second Punch Pressure

200 kN (Floating)

300 kN (floating)

500 kN

1000 kN

Lower Third Punch Pressure

250 kN (Fixed)

400 kN (fixed)

800 kN

1200 kN

Core Pin Pressure

70 kN

100 kN

200 kN

500 kN

Upper Outer Punch Stroke Adjustment

15 mm

20 mm

15 mm

15 mm

Upper Inner Punch Stroke Adjustment

25 mm

25 mm

30 mm

30 mm

Next Punch Filling Adjustment

60 mm

70 mm

70 mm

100 mm

Lower Second Punch Filling Adjustment

60 mm

70 mm

70 mm

100 mm

Upper Inner Punch Step Adjustment

±1.5 mm

±1.5 mm

±2 mm

±2 mm

Next Punch Step Adjustment

25 mm

30 mm

35 mm

50 mm

Lower Second Punch Step Adjustment

25 mm

30 mm

35 mm

50 mm

Next Punch Die Face Adjustment

±10 mm

±10 mm

±15 mm

±20 mm

Lower Second Punch Die Face Adjustment

±10 mm

±10 mm

±15 mm

±20 mm

Movable Core Pin

Included (1–3 cycles)

Included (1–3 cycles)

Included

Included

Floating Core Pin

Included

Weight

Approx. 300 kg

Approx. 400 kg

Approx. 900 kg

Approx. 1400 kg
