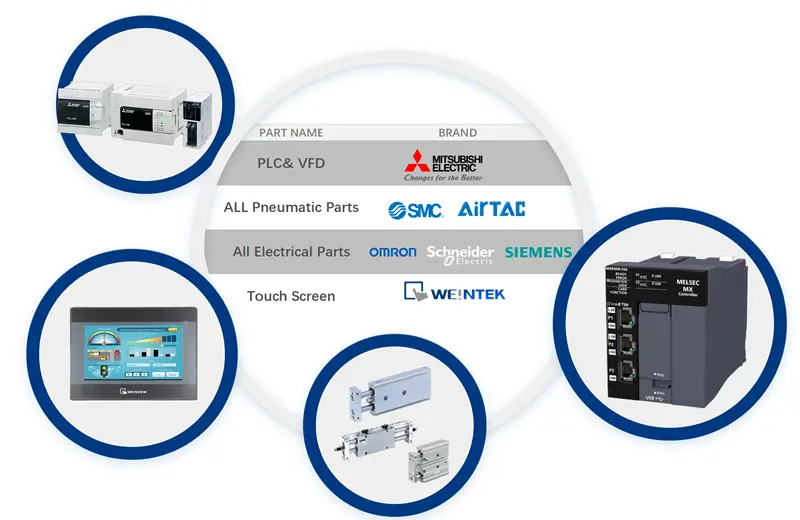

Maximum Compaction Force

60 kN

Ejection Force

40 kN

Die (Middle Die) Load Capacity

40 kN

Upper Punch Stroke

80 mm

Upper Punch Adjustment Range

40 mm

Fill Depth

60 mm

Ejection Stroke

40 mm

Powder Feed Adjustment Stroke

5 mm

Middle die face adjustment range

±10 mm

Die Set Accuracy

Platen parallelism and guide pillar perpendicularity within 0.01 mm

Forming Speed

12–45 RPM

Overload / Underload Protection

Mechanical load cell

Clutch System

Pneumatic clutch–brake combination

Lubrication Method

Internal circulating pressure lubrication

Powder Feeding System

Cam-driven linear feed

Powder Hopper Capacity

8 L

Angle Controller

Encoder 360

Operation Modes

Jog, Continuous, Stop, Emergency Stop, Reverse, Powder Detection Switch, Production Counter, Production Ratio Counter, Pressure Monitoring Switch

Main Motor Power

3.7 kW

Air Consumption

2 L/min

Power Supply

380 V @ 50 Hz (or as customer request)

Control Voltage

DC 24 V

Tooling Structure

Upper-1 / Lower-1, Upper-1 / Lower-2,
‎Upper-2 / Lower-2.5, Upper-2 / Lower-3

Floating Core Rod

Included

Machine Weight

Approx. 1.2 T

Overall Dimensions (W × D × H)

1200 × 1350 × 1850 mm

Die Set Specifications (Upper-1 / Lower-1 Configuration)

Upper Punch Load Capacity

60 kN

Die (Middle Die) Load Capacity

40 kN

Lower Punch Load Capacity

60 kN

Movable Core Rod Adjustment

±5 mm

Floating Core Rod Stroke

10 mm

Core Rod Fill Adjustment

10 mm

Core Rod Step Height Adjustment

5 mm

Tooling Weight

Approx. 60 kg
