XRPH-1 Mechanical Powder Compacting Press (for small parts)

Exclusive fully enclosed self-lubrication system, maintenance-free. The highest speed mechanical powder press in the industry.
Compact Small-Tonnage Powder Press, for laboratory use and small-batch production.
Categories: Mechanical Powder Press
FeaturesFeatures

1. Proprietary Technology

  • Fully enclosed self-lubrication system with internal pressure circulation and NOK dust seals for clean, low-maintenance operation.

  • Industry-leading productivity, delivering over 30% higher output than other mechanical powder presses.

2. High Efficiency & Precision

  • Floating intermediate die with fixed ejection position, enabling two-step segmented density control.

3. Simple Operation

  • Three-Color Indicator Alarm with real-time machine status monitoring.

4. High Quality

  • Heavy-duty frame and gearboxes integrally cast from nodular cast iron.

  • Bottom-mounted drive system for quiet, low-vibration operation.

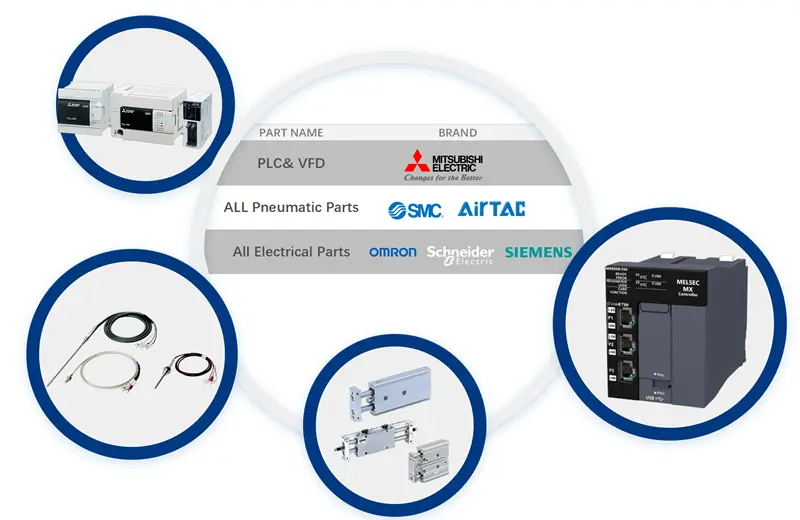

  • All components from globally recognized brand: SMC&AIRTAC(all pneumatic parts), Omron & Schneider & Siemens(all electrical parts).

Why XIRO machinery ?Why XIRO machinery ?

Mechanical Powder Press components_PH.webp

  • Excellent Technology: The first company in China to develop a fully enclosed lubrication system and pioneer the application of servo technology in mechanical presses, with multiple patented core designs.

  • Direct Sales from the Source Manufacturer: With over 10 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensive pre-sale and after-sale service system.

  • Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!

  • Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.

Click  Contact Us  submit your Information or send an email to sales@xirotech.cn

Bookmark our page. Learn more about the details of mechanical powder compacting press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!

serviceabout_uscontact_us
SpecificationSpecification

This table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.

Item

Technical Parameters

Rated Compaction Force

30 kN

Demolding Force

15 kN

Middle Die Pressure

20 kN

Upper Punch Stroke

70 mm

Upper Pressing Adjustment

40 mm

Filling Depth

40 mm

Demolding Stroke

40 mm

Lower Pressing Adjustment

40 mm

Forming Speed

15–60 SPM

Lubrication Method

Internal Circulation Pressure Lubrication

Feeding Method

Cam-driven Linear (Stroke: 45 mm)

Powder Hopper Capacity

5 L

Operation Mode

Jog, Continuous, Emergency Stop, Reverse, Powder Detection Switch, Production Counter

Main Motor Power

1.5 kW

Speed Control

Variable Frequency Drive (VFD)

Power Supply

380 V @ 50 Hz (or as customer request)

Machine Weight

Approx. 800 kg

Dimensions (W × D × H)

815 mm × 580 mm × 1880 mm
