XRP-1 Powder Compacting Hydraulic Press
Features1. High Precision & Efficiency:

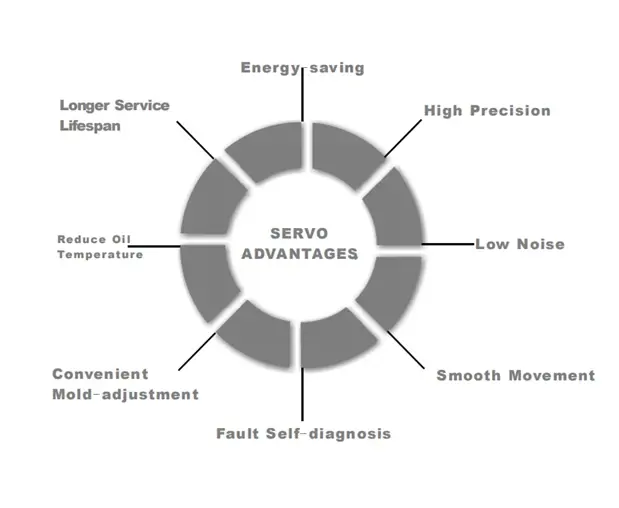

Servo System: Precision (±0.02mm) and stable pressure (1%F.S.).
Energy Savings: Reduces noise and oil temperature, saving 50-70% electricity.
Longer Service Life: Enhanced stability with servo motors.
2. Robust Construction:
Heavy-Duty Frame: Welded and reinforced for rigidity and stability.
Leak Prevention: Clamp-type oil pipes and integrated oil circuit block for easier maintenance.
3. Advanced Hydraulic System:
Bidirectional Cartridge Valve: High reliability with minimal hydraulic shock.
Main Cylinder: Alloy cast steel, finely ground for high pressure.
High Production Efficiency: Faster approach and return speeds.
PLC Control: Multi-stage pressure, multi-speed, and continuous fixed-pressure functions. Safety Features: Automatic alarm and fault diagnosis systems.
4. User-Friendly Interface:
Imported Touch Screens: Direct parameter and speed adjustments.
Bilingual Support: English and local language interface.
Various Stamping Modes: Fixed speed, position stop, load stop, pressing distance stop.
5. Optional Configurations:
Protective shield, anti-drop device, LED lighting, infrared grating.
Hydraulic-driven cushion pads, ejectors, knockouts, edge pressing devices, high-speed slides.
Why XIRO machinery ?
Direct Sales from the Source Manufacturer: With over 10 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensive pre-sale and after-sale service system.
Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!
Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your Information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of powder compacting hydraulic press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
SpecificationThis table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.
Item | Unit | Product Specifications | ||||||||
XRP-10 | XRP-20 | XRP-50 | XRP-100 | XRP-200 | XRP-300 | XRP-500 | XRP-800 | XRP-1000 | ||
Main Hydraulic Cylinder Capacity | ton | 10 | 20 | 50 | 100 | 200 | 300 | 500 | 800 | 1000 |
System Pressure | MPa | 21 | 21 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Max. Stroke | mm | 300 | 300 | 300 | 350 | 350 | 400 | 600 | 600 | 600 |
Opening Height | mm | 450 | 450 | 450 | 500 | 500 | 600 | 800 | 800 | 800 |
Powder Filling Height | mm | 150 | 150 | 200 | 200 | 300 | 300 | 500 | 500 | 500 |
Table Height from Floor | mm | 820 | 820 | 820 | 850 | 850 | 900 | 1000 | 1100 | 11000 |
Effective Table Area (Left–Right, between columns) | mm | 500 | 400 | 450 | 450 | 500 | 550 | 700 | 850 | 950 |
Effective Table Area (Front–Back, edge to edge) | mm | 400 | 400 | 450 | 450 | 500 | 650 | 800 | 950 | 1050 |
Main Cylinder Speed – Rapid Approach | mm/s | 150 | 130 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Main Cylinder Speed – Pressing | mm/s | 30 | 20 | 15 | 15 | 15 | 5 | 4 | 3 | 2.5 |
Main Cylinder Speed – Return | mm/s | 150 | 130 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Ejector Cylinder Force | kN | 20 | 20 | 50 | 100 | 150 | 300 | 600 | 800 | 1000 |
Ejector Stroke | mm | 150 | 150 | 200 | 200 | 300 | 300 | 500 | 500 | 500 |
Motor Power | kW | 3 | 3 | 5.5 | 7.5 | 15 | 20 | 36 | 50 | 65 |
Machine Weight (Reference) | kg | 820 | 980 | 1540 | 2680 | 3760 | 4400 | 7200 | 13500 | 17500 |
Power Supply | 380V | Three-phase five-wire | ||||||||
Die Clamping Method | T-slot | |||||||||
Operation Mode | Manual / Automatic | |||||||||
