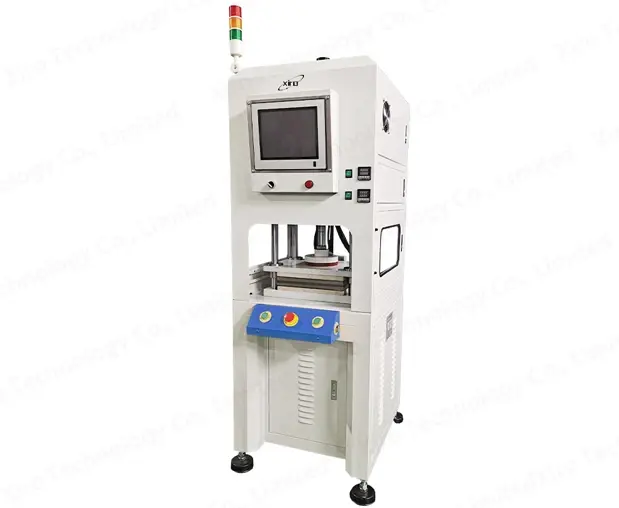

Heating Servo Press XRH-2

The machine's appearance, color, size, accessory brand, system, etc., can all be customized according to requirements.

Fitting/Straightening/Bending/Stamping/Riveting/Clamping Crimping/Inserting/Joining/Punching/Blanking/Riveting Spring Testing/Staking/Swaging/Assembly

Categories: Heating Press

Features

Why XIRO machinery ?

Specification

This table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.

Item		Unit	Product Specifications
Item		Unit	XRH-3T	XRH-5T	XRH-10T	XRH-20T	XRH-80T	XRH-100T	XRH-150T	XRH-200T	XRH-300T
Nominal force		kN	30	50	100	200	800	1000	1500	2000	3000
Max.Working pressure		Mpa	12	12	13	16	20	21	21	20	24
Main cylinder force		kN	30	50	100	200	800	1000	1500	2000	3000
Max.Stroke of ram		mm	150	150	150	200	350	350	350	350	350
Max.Open height		mm	200	200	200	200	450	450	550	600	650
Heating time		s	0-3	0-3	0-3	0-3	0-3	0-3	0-3	0-3	0-3
Temperature range		℃	0 to 300 (Adjustable)
Speed of ram	Down no load	mm/s	280	280	260	230	180	180	180	180	170
	Pressing	mm/s	40	40	40	35	15	12	10	10	8
	Return	mm/s	270	270	260	225	170	170	170	170	165
Effective area of working table	RL(column inside)	mm	300	300	300	350	550	550	550	550	550
Effective area of working table	FB(edge)	mm	450	450	450	450	600	600	600	600	650
Overall dimension	L.R	mm	900	900	900	1000	1550	1550	1760	1830	1420
	F.B	mm	900	900	900	900	1260	1260	1260	1360	1550
	H	mm	1850	1850	1900	1950	2580	2580	2650	2750	2920
Motor power		kW	2.25	2.25	3.75	5.5	7.5	7.5	7.5	11	15
Total weight		kg	450	500	600	800	2600	2600	3200	3500	6200
Oil quantity(Approx)		L	50	70	90	90	300	360	360	400	450
