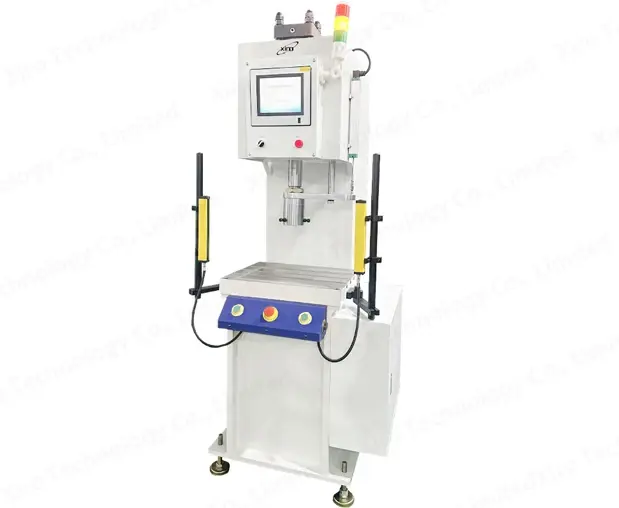

C Frame Hydraulic Press XRC-2

The machine's appearance, color, size, accessory brand, system, etc., can all be customized according to requirements.

Fitting/Straightening/Bending/Stamping/Riveting/Clamping Crimping/Inserting/Joining/Punching/Blanking/Riveting Spring Testing/Staking/Swaging/Assembly

Categories: C Frame Press

Features

Why XIRO machinery ?

Specification

This table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.

Item		Unit	Product Specifications
Item		Unit	XRC-3TS	XRC-5TS	XRC-10TS	XRC-15TS	XRC-20TS	XRC-25TS	XRC-30TS	XRC-40TS	XRC-50TS	XRC-60TS	XRC-80TS	XRC-100TS	XRC-150TS
Max.Working pressure		Mpa	12	14	13	19	21	20	19	20	20	20	21	20	21
Main cylinder force		kN	30	50	100	150	200	250	300	400	500	600	800	1000	1500
Max.Stroke of ram		mm	150	150	200	200	250	250	300	350	350	450	450	450	450
Max.Open height		mm	320	320	380	400	400	450	450	550	550	600	600	700	700
Speed of ram	Down no load	mm/s	220	210	300	280	280	250	250	210	205	190	190	190	180
	Pressing	mm/s	40	35	40	35	35	20	20	25	22	20	20	20	15
	Return	mm/s	200	200	280	270	270	230	230	200	200	180	185	180	180
Effective area of working table	RL(edge)	mm	-	-	350	350	350	400	400	450	450	500	500	600	600
Effective area of working table	FB(edge)	mm	-	-	250	250	250	300	300	250	250	300	300	380	380
Adaptor		mm	φ25*40	φ25*40	φ32*50	φ38*60	φ38*60	φ50*70	φ50*70	φ50*70	φ50*70	φ60*75	φ60*75	φ60*75	φ60*75
Effective area of working table	RL(edge)	mm	450	450	500	550	550	600	600	700	700	800	800	900	900
Effective area of working table	FB(edge)	mm	320	320	320	380	380	460	460	500	500	550	550	600	600
Overall dimension	L.R	mm	680	680	900	940	940	960	960	820	820	950	950	1150	1150
	F.B	mm	920	920	600	1040	1040	1080	1080	1350	1540	1680	1750	1840	1950
	H	mm	1980	1980	2000	2020	2020	2415	2415	2150	2200	2350	2540	2580	2670
Motor power		kW	4	4	4	4	4	6	6	6	11.6	11.6	11.6	16.4	16.4
Total weight		kg	600	720	800	850	890	2210	2350	2480	2610	2800	4850	6500	11000
Oil quantity(Approx)		L	70	70	80	80	80	120	120	130	130	150	200	270	270
