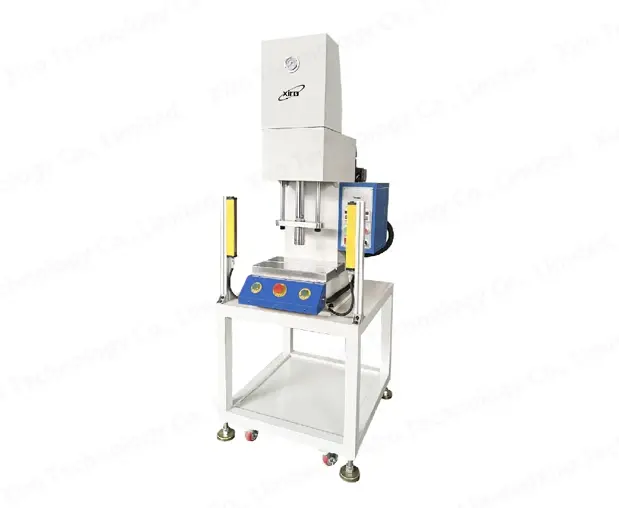

C Frame Hydraulic Press XRC-1
Features1. Precision & Efficiency:
High-Speed Cylinder: Faster approach and return speeds for high production efficiency.
Extended service life due to stability.
2. Robust Construction & Low Maintenance:
Heavy-duty welded frame with reinforced bending structure for rigidity.
Clamp-type oil pipes prevent leakage.
Integrated oil circuit block for easy inspection and maintenance.
3. Safety & User-Friendly Design:
Automatic alarm and fault diagnosis for safety.
Open C-frame structure for multidirectional access.
Built-in memory function for parameter retention.
Large operation space, long stroke distance, and ample opening height, convenient loading of molds and disassembly and maintenance of components.
4. Optional Configurations:
Protective shield, anti-drop device, LED lighting, infrared grating.
Fully hydraulic-driven cushion pads, ejectors, knockouts, edge pressing devices, high-speed slides.
Why XIRO machinery ?
-
Direct Sales from the Source Manufacturer: With over 10 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensivepre-sale and after-sale service system.
-
Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!
-
Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your Information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of C frame hydraulic press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
SpecificationThis table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.
Item | Unit | Product Specifications | |||||||||||||
XRC-3TS | XRC-5TS | XRC-10TS | XRC-15TS | XRC-20TS | XRC-25TS | XRC-30TS | XRC-40TS | XRC-50TS | XRC-60TS | XRC-80TS | XRC-100TS | XRC-150TS | |||
Max.Working pressure | Mpa | 12 | 14 | 13 | 19 | 21 | 20 | 19 | 20 | 20 | 20 | 21 | 20 | 21 | |
Main cylinder force | kN | 30 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | |
Max.Stroke of ram | mm | 150 | 150 | 200 | 200 | 250 | 250 | 300 | 350 | 350 | 450 | 450 | 450 | 450 | |
Max.Open height | mm | 320 | 320 | 380 | 400 | 400 | 450 | 450 | 550 | 550 | 600 | 600 | 700 | 700 | |
Speed of ram | Down no load | mm/s | 220 | 210 | 300 | 280 | 280 | 250 | 250 | 210 | 205 | 190 | 190 | 190 | 180 |
Pressing | mm/s | 40 | 35 | 40 | 35 | 35 | 20 | 20 | 25 | 22 | 20 | 20 | 20 | 15 | |
Return | mm/s | 200 | 200 | 280 | 270 | 270 | 230 | 230 | 200 | 200 | 180 | 185 | 180 | 180 | |
Effective area of working table | RL(edge) | mm | - | - | 350 | 350 | 350 | 400 | 400 | 450 | 450 | 500 | 500 | 600 | 600 |
FB(edge) | mm | - | - | 250 | 250 | 250 | 300 | 300 | 250 | 250 | 300 | 300 | 380 | 380 | |
Adaptor | mm | φ25*40 | φ25*40 | φ32*50 | φ38*60 | φ38*60 | φ50*70 | φ50*70 | φ50*70 | φ50*70 | φ60*75 | φ60*75 | φ60*75 | φ60*75 | |
Effective area of working table | RL(edge) | mm | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 700 | 700 | 800 | 800 | 900 | 900 |
FB(edge) | mm | 320 | 320 | 320 | 380 | 380 | 460 | 460 | 500 | 500 | 550 | 550 | 600 | 600 | |
Overall dimension | L.R | mm | 680 | 680 | 900 | 940 | 940 | 960 | 960 | 820 | 820 | 950 | 950 | 1150 | 1150 |
F.B | mm | 920 | 920 | 600 | 1040 | 1040 | 1080 | 1080 | 1350 | 1540 | 1680 | 1750 | 1840 | 1950 | |
H | mm | 1980 | 1980 | 2000 | 2020 | 2020 | 2415 | 2415 | 2150 | 2200 | 2350 | 2540 | 2580 | 2670 | |
Motor power | kW | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 11.6 | 11.6 | 11.6 | 16.4 | 16.4 | |
Total weight | kg | 600 | 720 | 800 | 850 | 890 | 2210 | 2350 | 2480 | 2610 | 2800 | 4850 | 6500 | 11000 | |
Oil quantity(Approx) | L | 70 | 70 | 80 | 80 | 80 | 120 | 120 | 130 | 130 | 150 | 200 | 270 | 270 | |
