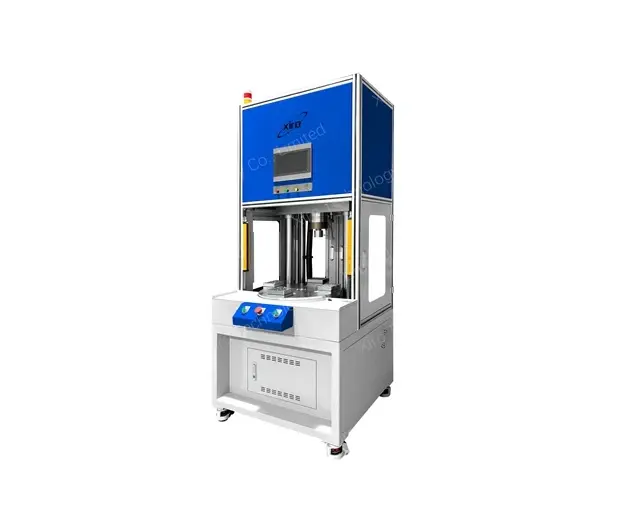

XRES-7 Electric Servo Press (Rotary Version)

Electric servo press with a rotary table for continuous and efficient multi-station operation, designed for processes balancing precision and productivity, to be performed at separate stations in a synchronized cycle.

Customized fixtures and automation solutions based on specific application needs. The machine's appearance, color, size, accessory brands, program, and other configurations can all be customized to meet your requirments.

Categories: 4 Column

Features

Why XIRO machinery ?

Which press is best?

Specification

This table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.

Item	Specification
Item	XRES-1-5T	XRES-5-20T	XRES-20-50T
Pressing mode	1/pressure mode—2/position mode—3/position force mode	1/pressure mode—2/position mode—3/position force mode	1/pressure mode—2/position mode—3/position force mode
Equipment weight	1100KG±50KG	1600KG±50KG	2000KG±50KG
Maximum stroke	≥150mm	≥150mm	≥150mm
Data storage	USB (real time)	USB (real time)	USB (real time)
Data transmission	Ethernet (optional)	Ethernet (optional)	Ethernet (optional)
Pressure resolution	1N	1N	1N
Displacement resolution	0.001mm	0.001mm	0.001mm
Pressure judgment	±zone location	±zone location	±zone location
Location judgment	±zone location	±zone location	±zone location
Press-fitting program formula	save and call	save and call	save and call
Displacement accuracy	≤0.01mm	≤0.01mm	≤0.01mm
Displacement repetition accuracy	±0.01mm	±0.01mm	±0.01mm
Pressure accuracy	0.5%FS	0.5%FS	1%FS
Program capacity	more than 100 sets	more than 100 sets	more than 100 sets
Flatness of upper indenter	range 0.02mm≤80mm	range 0.02mm≤80mm	range 0.02mm≤80mm
Relative parallelism of upper and lower worktables	range 0.02mm≤80mm	range 0.02mm≤80mm	range 0.02mm≤80mm
Verticality	range 0.05mm≤150mm	range 0.05mm≤150mm	range 0.05mm≤150mm
The fastest speed of spindle	upper/lower 100MM/S (adjustable)	upper/lower 100MM/S (adjustable)	upper/lower 100MM/S (adjustable)
press-fitting speed	0.1-50mm/s (adjustable)	0.1-50mm/s (adjustable)	0.1-50mm/s (adjustable)
Total power of equipment	1-3KW	3-7.5KW	7.5KW-22KW
Equipment appearance color	computer ash (powder baking paint）	computer ash (powder baking paint）	computer ash (powder baking paint）
