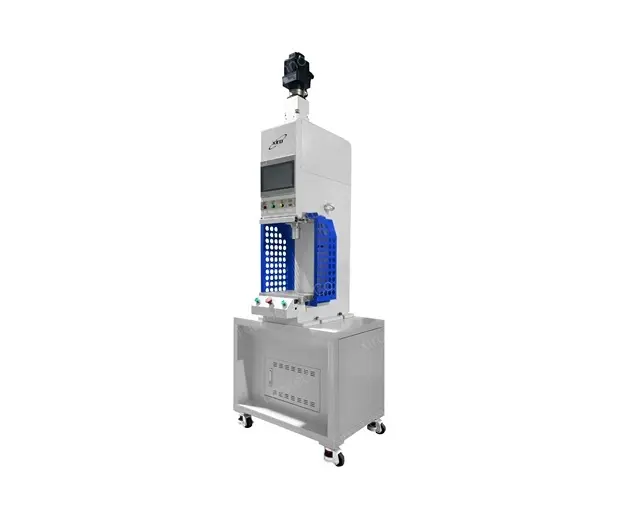

XRES-2 Electric Servo Riveting Machine

Electric servo riveting machine is a high-precision, high-efficiency automated riveting equipment. Powered by a servo motor and engineered for reliable joint formation, it ensures stable riveting of both metal and non-metal materials. It is widely used in parts assembly and riveting.

Customized fixtures and automation solutions based on specific application needs. The machine's appearance, color, size, accessory brands, program, and other configurations can all be customized to meet your requirments.

Categories: C Frame Press

Features

1.High Precision & Process Management

Accuracy：Pressure accuracy ±0.5% F.S., displacement accuracy up to 0.01mm, and displacement repeatability also at 0.01mm.
Real-time Monitoring & High Traceability: Sampling frequency up to 10ms（position & pressure）, real-time pressure curve display and continuous data export via USB or Ethernet.
Multiple Pressing Functions & Operation Modes: Flexible configuration of pressing conditions (speed/position/pressure/holding time) and stop conditions (pressure/position/time/cycle count, etc.) to support diverse operation modes for complex process requirements.

2.Full Tonnage Range & Customization Capability:500kg-10T+. Stroke, worktable size, opening height, and tool mounting hole can all be customized to meet specific needs. Customizable tools available, supporting turnkey solutions for your products.

3. Energy Efficient: Fully electric and oil-free. Consumes only 1/5 the energy of hydraulic or pneumatic presses, reducing both energy use and operating costs.

4. Easy Operation: User-friendly HMI and touch screen allows intuitive parameter setting. Supports multi-language display including Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Russian, Vietnamese, German, French, Spanish, Italian, Arabic, etc., meeting global user requirements.

5. Low Maintenance & Clean & Long Life:No traditional components (flywheel, cylinder, motor, clutch), no oil leakage, ideal for clean environments. Supports automatic pressure calibration, requires minimal maintenance and cuts maintenance costs. Last up to 15 times longer than conventional press systems.

6. Safety: Electric servo driven, equipped with safety light curtains, sensitive emergency stop, two-hand operation mode to ensure operator safety.

7. Low Noise: Low noise during operation, ideal for noise-sensitive environments.

Why XIRO machinery ?

Excellent Technology: Our machines use top Delta motors and KEYENCE/Mitsubishi PLCs. They work as well as famous German or Japanese brands but cost only 20% of the price. You get high quality and great precision with much less investment.
Direct Sales from Manufacturer: Machine manufacturer with over 10 years of production experience. Our presses reach over 60 countries, serving nearly 2,000 manufacturers globally and earning widespread acclaim.
Service And Support: Professional engineering team offering 24/7 online technical service and response. We will ensure that all orders it's the most competitive, accurate solution to your production requirements.
Quality Assurance: All machines are ISO9001 and CE certified. 2-year warranty and lifetime service. Longer warranty period than the same industry.

Click Contact Us submit your information or send an email to sales@xirotech.cn

Bookmark our page. Learn more about the details of electric servo press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!

Which press is best?

	XIRO Electric-servo	Electric-servo	Hydraulic	Mechanical
High Tonnage Capacity			✔	✔
High Cycles Per Minute	✔	✔	✔	✔
High Accuracy	✔	✔	✔	✔
Programmable/ Adjustabe Stroke	✔	✔	✔
Full Tonnage Throughout Stroke	✔	✔	✔
Customizable	✔	✔	✔
Low Acquisition Cost	✔		✔
Energy Efficient	✔	✔
Low Maintenance	✔	✔
Small Carbon Footprint	✔	✔
Quiet	✔	✔

Specification

This table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.

Specification		500 kgf	1000 kgf	2000 kgf	3000 kgf	5000 kgf
Operating Temperature		0–40°C (No Condensation)
Power Supply		Single-phase AC220V		Three-phase AC380V
Power Consumption		750W	1000W	2000W	3000W	4650W
Riveting Control Mode		1. Constant speed mode with precise position stop settings. 2. Constant speed mode with precise pressure stop settings.
Press-fit Program		Built-in 10 sets of pressing programs, customizable and callable.
Operating Interface		Standard configuration with 10-inch touch screen display.
Control Method		High-performance PLC module + dedicated control unit.
Drive Mode		Precision servo motor drive + secondary grinding precision ball screw actuator.
I/O Interface		USB 2.0, supports data import/export.
External Interface		Optional 16-pin aviation connector for external device communication and control.
Riveting Spindle Diameter		φ12	φ15	φ16	φ20	φ20
Pressure output	Rated Output	500kgf	1000kgf	2000kgf	3000kgf	5000kgf
	Applicable Range	10%–100% of the full range.
	Set Unit	0.1kgf
	Pressure Accuracy	±1% F.S
	Repeatability‌	±1% F.S (Under consistent conditions of temperature
Positioning stroke	Rated Stroke	50/100mm, Customizable.			50/80/100mm, Customizable.
	Set Unit	0.001mm
	Repeatability‌	±0.01mm (Under consistent conditions of temperature, process, and load).
Linear speed	Forward Speed	0.1–120 mm/s				0.1–120 mm/s
	Testing Speed	0.1–20 mm/s				0.1–10 mm/s
	Pressing Speed	0.1–120 mm/s				0.1–10 mm/s
	Return Speed	0.1–120 mm/s				0.1–120 mm/s
	Set Unit	0.01 mm/s
Pressure holding time	Max Setting	99.99 sec
	Recommended Value	<10 sec
	Set Unit	0.1 sec
