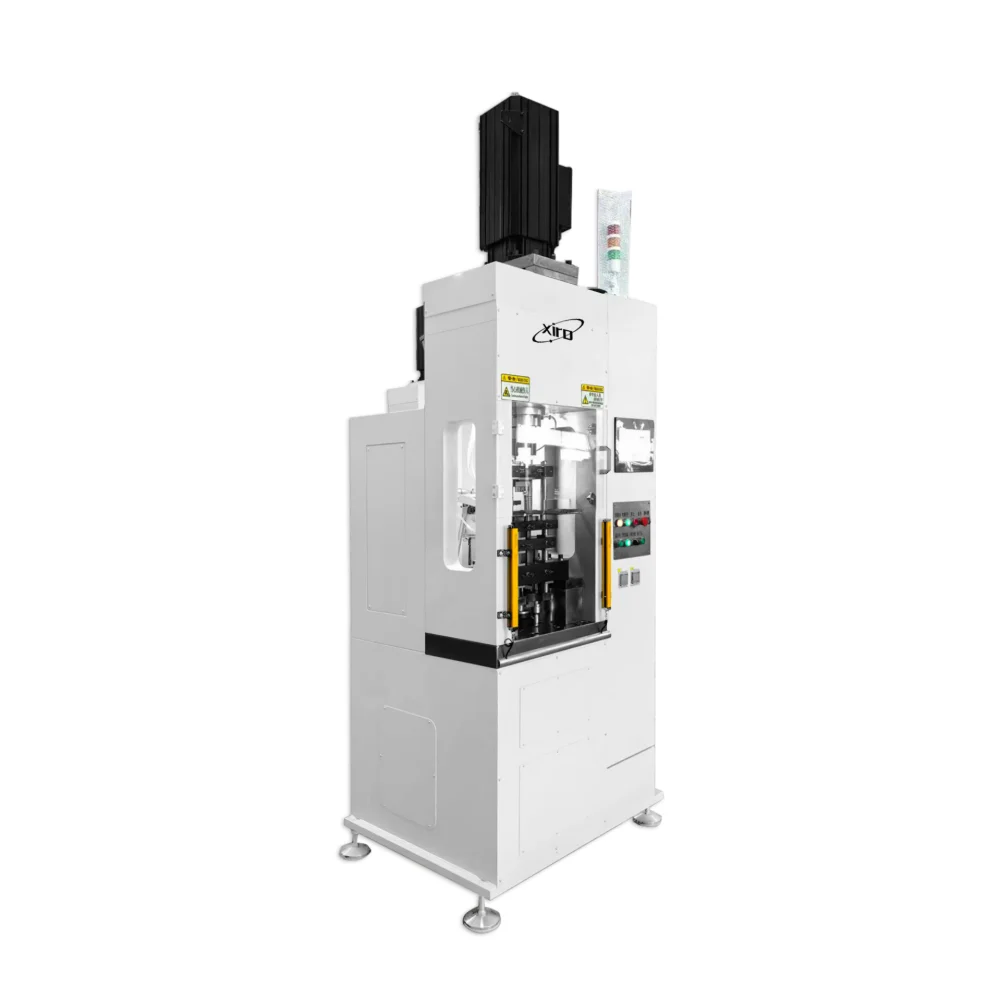

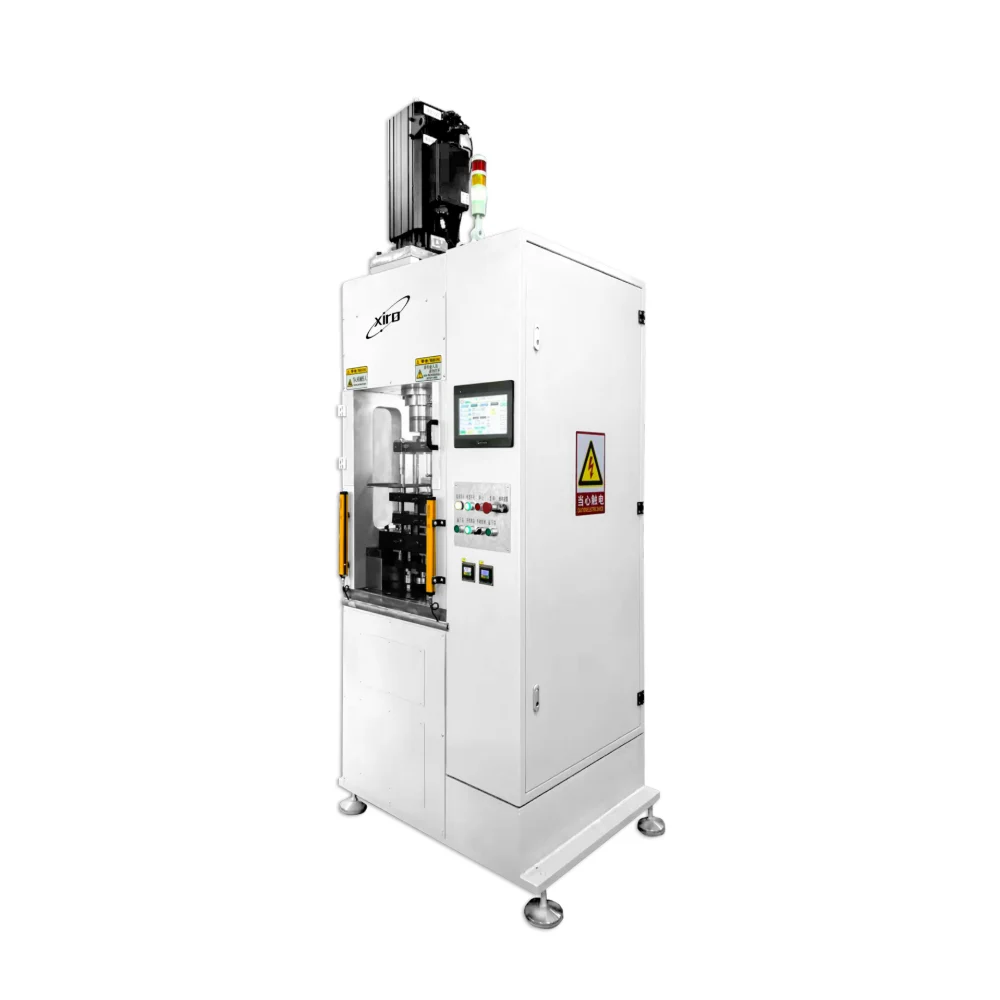

Electric Servo Powder Compacting Press Machine
Press metal, ceramic and magnetic powder into uniform-density green parts. Servo direct drive with floating-die control — no hydraulic oil, no density drift, and every cycle traced.
CE & ISO 9001 · 5 – 60T · Free voltage adaptation for your local power supply
What Powder Are You Compacting?
From magnetic powder cores to PM structural parts, the servo press is configured to your material, fill depth and density target.
Alloy Magnetic Powders
Fe-Ni, Fe-Si, Fe-Si-Al, and other alloys for magnetic cores and components.
MnZn Soft Ferrite
MnZn ferrite powders for transformer, inductor and choke cores with consistent density.
Magnetic Iron Powder
Iron-based magnetic powders for magnetic cores and other compacted components with uniform green density.
Ceramic Powder
Ceramic powders for insulators, substrates and technical ceramic components with controlled density.
Why Engineers Choose Servo Over Hydraulic
Powder compaction is unforgiving — density drift and cracking are invisible until sintering. Servo control fixes the root cause.
Request a Technical Evaluation
Send us your powder material and part drawing. We'll evaluate your application and recommend the right press, complete with machine specifications before you buy.
Send Us Your PartWhat happens after I order?
A transparent 6-step process from quote to commissioning — no black box.
- Inquiry & quote — factory-direct price in 12 hours
- Design & confirm — die set, tooling, customization
- Production — in-house machining, documented
- Testing — every machine calibrated & accuracy-tested
- Shipment — export packing + FOB, CIF or DDP options
- Ready to Use — complete machine delivery, plug in and start pressing
Can I trust the build quality?
Premium components. CE & ISO certified. Comparable quality at a fraction of the price of European, US and Japanese brands.
Ready to start?
Request a quote — reply within 12 hours.
Five Models, 5 to 60 Tons
The XRESP Series covers 5–60 tons, configurable as one-upper/one-lower or one-upper/two-lower punch for multi-level parts.
| Parameter | XRESP5T | XRESP10T | XRESP20T | XRESP40T | XRESP60T |
|---|---|---|---|---|---|
| Max. Pressing Force (kN) | 5 | 10 | 20 | 40 | 60 |
| Max. Ejection Force — Die (kN) | 2.5 | 5 | 10 | 20 | 30 |
| Max. Ejection Force — 2nd Lower (kN) | 2.5 | 4 | 6 | 10 | 10 |
| Max. Fill Depth — Die (mm) | 20 | 40 | 50 | 60 | 80 |
| Over / Under-Fill (mm) | 0–5 | 0–5 | 0–5 | 0–5 | 0–5 |
| Upper Punch Stroke (mm) | 80 | 100 | 110 | 110 | 140 |
| Upper Punch Adjustment (mm) | 20 | 30 | 30 | 40 | 50 |
| Die Face Adjustment (mm) | 5 | 10 | 10 | 10 | 10 |
| Max. Forming Speed (spm) | 20–40 | 20–40 | 20–40 | 15–30 | 15–30 |
| Upper Servo Motor (kW) | 5.5 | 7.5 | 5.5 | 7.5 | 11 |
| Lower Servo Motor (kW) | 4.4 | 4.4 | 4.4 | 5.5 | 7.5 |
| 2nd Lower Servo Motor (kW) | 2.9 | 2.9 | 2.9 | 2.9 | 5.5 |
| Feed Servo Motor (kW) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Dimensions L×W×H (mm) | 1000×800×2400 | 1000×800×2600 | 1000×1430×2280 | 1000×1430×2465 | 1200×1500×3200 |
All models are all-electric (no hydraulic oil). Configurable as Upper-Single-Lower (one upper / one lower punch) or Upper-Single-Lower-Double (one upper / two lower punches) for multi-level parts. Density and F-S curve are recorded for every cycle.
