Servo Trimming Press XRT-2
FeaturesTrimming Press
Suitable for small-tonnage stamping and trimming excess material from metal, plastic, and rubber parts.
1. High Precision & Efficiency:
Servo System: Ensures precision (±0.02mm) and stable pressure (1%F.S.).
Energy Savings: Reduces noise and oil temperature, saving 50-70% electricity.
Longer Service Life: Enhanced stability.
2. Robust Construction:
Durable Build: Heavy-duty materials for rigidity and stable operation.
Stable structure: Four-column structure and open operation desk, easy to use and maintain.
Customizable Settings: Adjustable pressure, stroke, and pressurizing time.
3. Advanced System:
Bidirectional Cartridge Valve: High reliability with minimal hydraulic shock.
Main Hydraulic Cylinder: Alloy cast steel, finely ground for high pressure.
High Production Efficiency: Faster approach and return speeds.
PLC Control: Multi-stage pressure, multi-speed, and continuous fixed-pressure functions.
Safety Features: Automatic alarm and fault diagnosis systems.
4. Optional Configurations:
Customizable Options: Protective shield, anti-drop device, LED lighting, infrared grating, hydraulic-driven cushion pads, ejectors, knockouts, edge pressing devices, high-speed slides.
Why XIRO machinery ?
Direct Sales from the Source Manufacturer: With over 10 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensive pre-sale and after-sale service system.
Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!

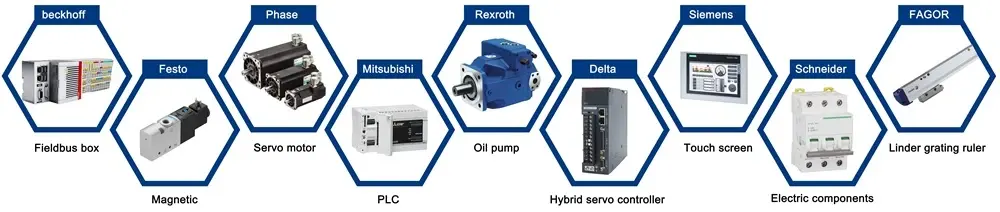

Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your Information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of stamping hydraulic press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
SpecificationThis table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.
Item | Unit | Specifications | |||||||||
XRS-10TS | XRS-20TS | XRS-30TS | XRS-40TS | XRS-50TS | XRS-60TS | XRS-80TS | XRS-100TS | XRS-150TS | |||
Max.Working pressure | Mpa | 16 | 18 | 18 | 18 | 20 | 20 | 21 | 20 | 21 | |
Main cylinder force | kN | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | |
Max.Stroke of ram | mm | 250 | 250 | 300 | 300 | 300 | 450 | 450 | 450 | 450 | |
Max.Open height | mm | 400 | 400 | 500 | 500 | 500 | 700 | 700 | 700 | 700 | |
Middle blanking apertuer size | mm | 150*120 | 150*120 | 200*150 | 200*150 | 200*150 | 300*200 | 400*250 | 400*250 | 400*250 | |
Speed of ram | Down no load | mm/s | 260 | 230 | 220 | 220 | 210 | 190 | 190 | 190 | 190 |
Pressing | mm/s | 40 | 35 | 30 | 20 | 20 | 15 | 15 | 15 | 15 | |
Return | mm/s | 260 | 225 | 210 | 210 | 210 | 190 | 190 | 190 | 175 | |
Effective area of working table | RL(column inside) | mm | 400 | 500 | 600 | 600 | 600 | 900 | 1000 | 1000 | 1000 |
FB(edge) | mm | 400 | 500 | 500 | 600 | 600 | 750 | 800 | 800 | 800 | |
Overall dimension | L.R | mm | 950 | 1050 | 1150 | 1200 | 1200 | 1460 | 1580 | 1620 | 1680 |
F.B | mm | 950 | 1050 | 1050 | 1200 | 1200 | 1220 | 1320 | 1350 | 1370 | |
H | mm | 2100 | 2150 | 2250 | 2250 | 2300 | 2800 | 2850 | 2950 | 3150 | |
Motor power | kW | 2.25 | 3.75 | 3.75 | 5.5 | 5.5 | 11.6 | 11.6 | 16.4 | 16.4 | |
Total weight | kg | 650 | 850 | 1200 | 1300 | 1500 | 2900 | 3200 | 3400 | 3600 | |
Oil quantity(Approx) | L | 100 | 120 | 150 | 150 | 180 | 300 | 300 | 300 | 300 | |
